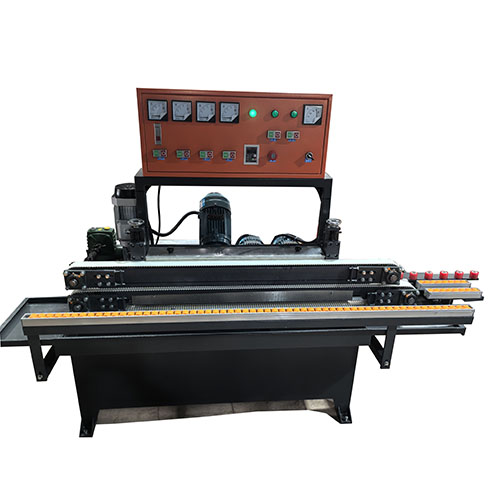

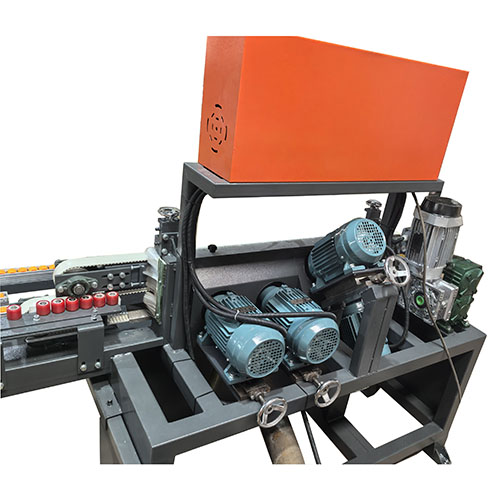

Transform sharp glass edges into smooth straight edges with our 4-head glass edging machine. Compact footprint saves space while delivering fast, precise grinding for workshops and industrial use.
Technical Specifications
Upper Chamfering: 1 grind,
2.Lower Chamfering:1 grind
3.Flat Surface: 2 grinds
4.Total Grinding motor: 4 pcs
5.Main Machine Dimensions:2000mm x 900mm x 1600mm
6.Total Weight: 500Kg
7.Chamfering Angle: 45°
8.Processing Thickness: 3~15mm
9.Minimum Processing Size: 25mm x 75mm
10.Processing Speed: 0~5m/min (stepless speed regulation)
11.Installed Power:7KW
12.Input Voltage/Frequency:380V/50HZ
13.Motor:Juhong Motor
