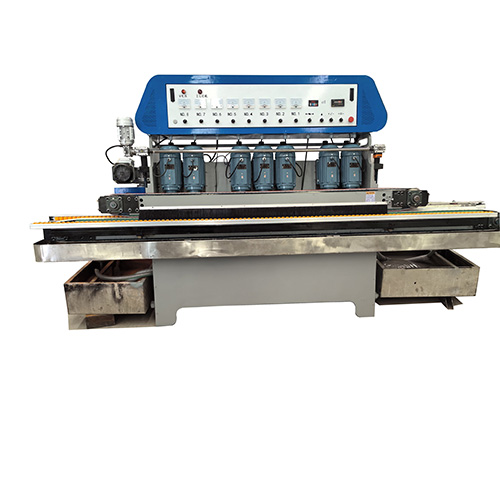

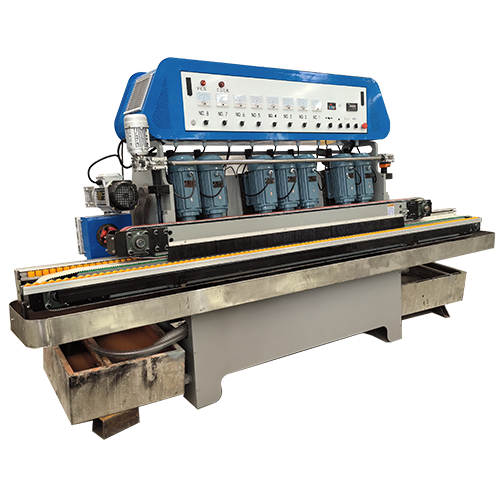

Create flawless, high-gloss beveled edges on glass with our 8-head beveling machine. Compact design ensures precision and efficiency for decorative, architectural, and industrial glass processing.
The horizontal linear beveling glass edging machine is a revolutionary glass deep processing equipment.
It deviates from the traditional vertical glass chain conveyor method and adopts a horizontal clamping
transmission method using synchronous belts, significantly enhancing the precision of edging. The machine
is primarily comprised of five major systems, namely: the control system, grinding system, clamping transmission system,
cooling system, and receiving system.
Parameter
External Dimensions: 3400*1000*1730mm
Total Weight: 2100kg
Processable Glass Thickness: 3-25mm
Chamfering Angle: 5-35°
Maximum Bevel Width: 20mm
Minimum Processing Size: 35*35mm
Processing Speed: 0-4m/min
Input Voltage/Frequency: 380v/50hz
Installed Power: 14.5kw
Configure Guide
Rail: Cast Iron
Switch: Chint Side
Stand: Solid Q235 Precision Processed Steel Plate
Inverter: Guangzhou Sanjing
Motor Slider: Cast Iron
Bearings: Harbin Bearings
Motor: Hunan Jinglong
Reducer: Hangzhou Boyu
Frequency Conversion Motor: Hangzhou Boyu
Indicator Light: Chint
Synchronous Belt: Foshan Yongli
AC Contactor: Chint
Water Tank: 304# Stainless Steel
Angle Adjustment: Electric Adjustment
