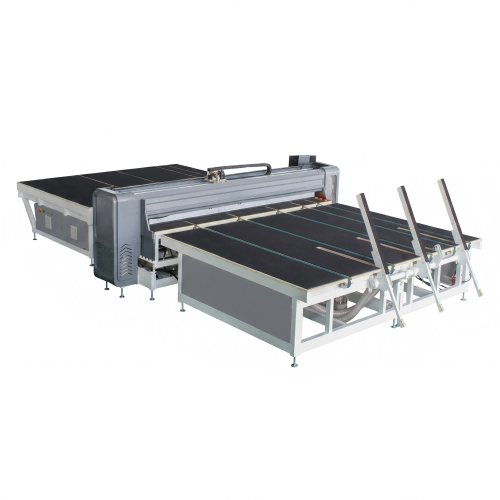

Automatic Laminated Glass Cutting Production Line | High Precision

1. Equipment specifications:

   (1) The maximum size of cuttable laminated glass: 3660*2440mm

  (2) Minimum size of cuttable laminated glass: 140mm × 140mm(Min.glass size 280mm)

    (3) Workbench height: 900mm±50mm

    (4) Equipment weight: 6T

    (5) Cutting thickness: 3+3mm-8+8mm laminated glass

(6) Film thickness: 0.38-1.52mm (PVB, EVA)

2.Cutting parameters:

  (1) Straight line parallelism: ≤±0.25mm/m

   (2) Diagonal accuracy: ≤ ± 0.25mm / m (the above accuracy is based on the accuracy of the cutting line before the slap)

    (3) Cutting speed: 0 ~ 100m / min.

3.Power /rate of work:

(1) Installation power requirements: 415 / 380V / 50HZ (baseline four lines), special circumstances can be adjusted according to customer requirements

(2) Total power of equipment: 24KW

(3) Compressed air: 0.8MPa (provided by the user)
